Stud Installation

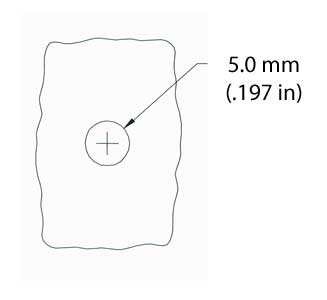

4mm Stud

Panel Preparation

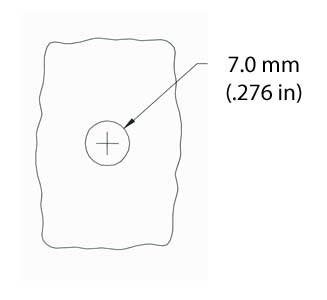

6mm Stud

Panel Preparation

PX-1600 Stud Panel Preparation Drawing   PX-1600 Stud Panel Preparation Drawing

Installation consists of:

  • Inserting the stud through the panel hole. (dimensions shown above)
  • Attaching the retainer to the underside of the panel by forcing the retainer over the stud cam while supporting the stud on the other side of the panel.
  • Note: The retaining spring requires a steel retainer. Install the spring on the stud then the retainer.

Note: Support Preparation is covered under Receptacle Installation
