ST-1200 Line Receptacle Support Preparation

Weld Plate

Support Preparation for Weld Plate Receptacle

Stud Retainer Recessed in Panel Underside
Plate Size Hole Diameter
3 7/32"
4 9/32"
5 11/32"
65 15/32"
1. Make stud hole in support.
Stud Hole Drawing

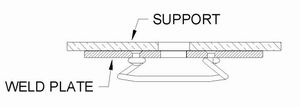

2. Secure Receptacle to Support
Secure Receptacle to Support Drawing
Stud Retainer Recessed in Support
1. Make Stud Hole In Support
Plate Size Stud Hole Dia.
Grommet or
1219-24 Spring		 1219-R
Snap Ring
3 11/32" 1/4"
4 15/32" 5/16"
5 19/32" 3/8"
65 25/32" 17/32"
Stud Hole Drawing
2. Secure Receptacle to Support
Secure Receptacle to Support Drawing
