Quarter Turn - PA-3500 Line Single Hole Receptacles

Right Angle Single Hole Receptacle - 3518-B

This product is compliant with DFARS 252.225-7014
Preference for Domestic Specialty Metals, Alt 1

3518-B assemblies are not part of MIL-F-25173A.

3518-B Receptacle Picture

Click here for the Engineering Drawing
3518-B Revision E

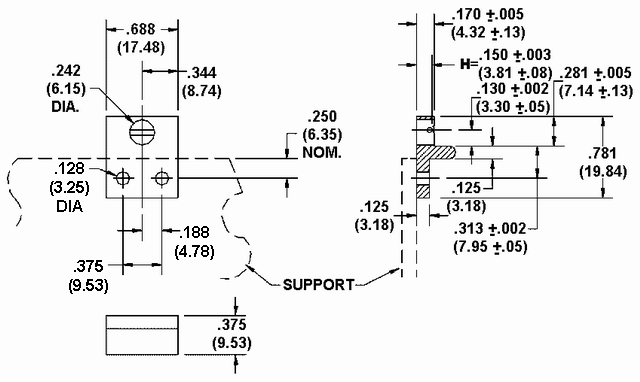

3518-B Receptacle Dimension Drawing
Materials
Strip Extrusion: Aluminum alloy 6061-T6
Wire: Stainless steel Type 316, condition B, spring temper
Weight: .0053 lb (2.40 g)

Flat Single Hole Receptacle - 3518-C

This product is compliant with DFARS 252.225-7014
Preference for Domestic Specialty Metals, Alt 1

3518-C assemblies are not part of MIL-F-25173A.

3518-C Receptacle Picture

Click here for the Engineering Drawing
3518-C Revision C

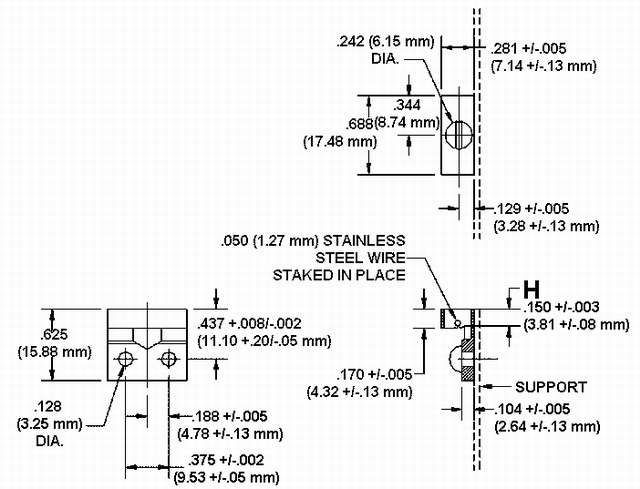

3518-C Receptacle Dimension Drawing
Materials
Strip Extrusion: Aluminum alloy 6061-T6
Wire: Stainless Steel Type 316, condition B, spring temper
Weight: .0084 lb (3.81 g)

Single Hole Receptacle - 3518-G

3518-G assemblies are not part of MIL-F-25173A.

3518-G Receptacle Picture

Click here for the Engineering Drawing
3518-G Revision D

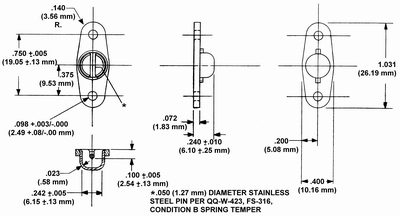

3518-G Receptacle Dimension Drawing
Materials
Cap and Base: Aluminum alloy 6061-T6
Wire: Stainless Steel

Single Hole Receptacle - 3518-F

3518-F assemblies are not part of MIL-F-25173A.

3518-F Receptacle Picture

Click here for the Engineering Drawing
3518-F Revision E

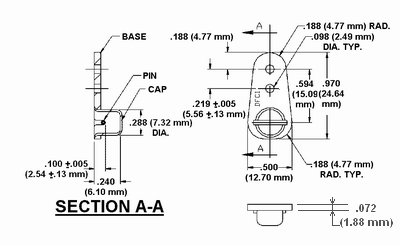

3518-F Receptacle Dimension Drawing
Materials
Cap and Base: Aluminum alloy 6061-T6
Wire: Stainless Steel

Single Hole Receptacle - 3502-SS

3502-SS is not part of MIL-F-25173A.

3502-SS Receptacle Picture

Click here for the Engineering Drawing
3502 Revision C

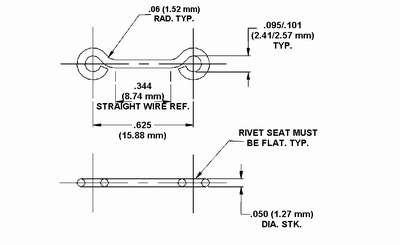

3502-SS Receptacle Dimension Drawing
Material
Wire: Stainless Steel
