Special Receptacle Strips

Subject to Minimum Orders

All special strip configurations use the stand stud hole size and "H" dimension (depth of stud engagement wire in stud hole), for compatibility with the standard PA-3500 Line stud assemblies.


3590-24714-H320

This product is compliant with DFARS 252.225-7014
Preference for Domestic Specialty Metals, Alt 1

3590-24714-H320 assemblies are not part of MIL-F-25173A.

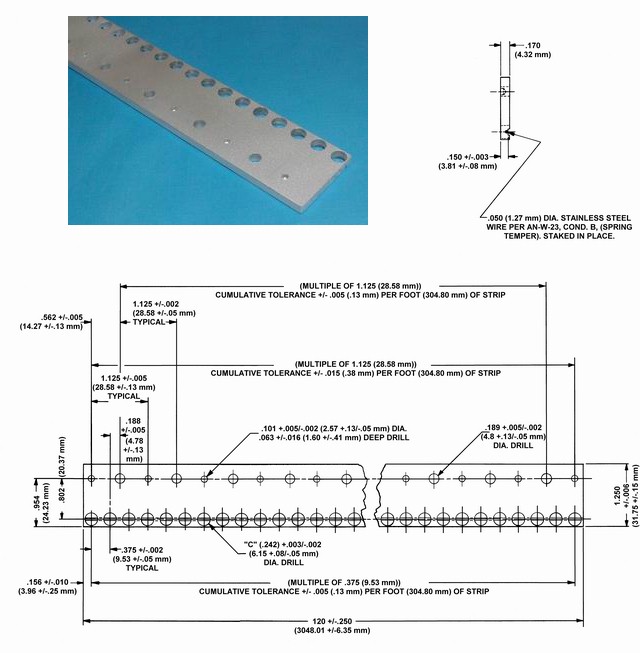

3590-24714 Picture and Dimension Drawing

Click here for the Engineering Drawing
3590-24714-H Revision -

Materials
Strip Extrusion: Aluminum alloy 6061-T6
Wire: Stainless steel Type 316, condition B, spring temper
