ST-1200 Line Size 3 Receptacles - Weld Plate

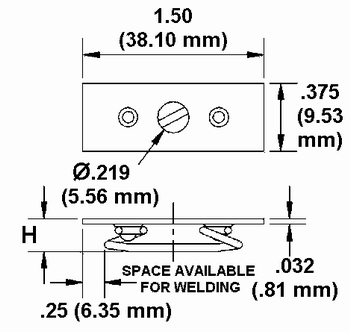

Weld Plate Receptacle Picture Weld Plate Receptacle Dimension Drawing

Spring Wire Diameter: .045 (1.14 mm)

Size 3 Weld Plate

Materials:
Plate: steel
Spring: music wire
Rivets: stainless steel

Finish:
Plate: unfinshed
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT
Rivets: stainless steel

Optional Stainless Steel: Stainless steel is available on special order. All parts are 300 series stainless steel. Add the suffix -SS to basic part number. (E.g., 1224-735-205-SS)

Part Number "H" Dimension
inch
± .010
mm
± .25
1224-735-205-Z3CT .205 5.21
1224-735-230-Z3CT .230 5.84
1224-735-255-Z3CT .255 6.48
1224-735-280-Z3CT .280 7.11

Weight: .0061 lb (2.77 g)

Recommended Deflection: .020" to .045" (.51 to 1.14 mm)


Calculating Stud Length
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Total Pileup Drawing
  1. First calculate the total pileup. Add Panel thickness + Support thickness + Gap thickness.
    NOTE: The gap is the distance between the panel and the support, and it may be the result of panel and support shape, use of a grommet or other stud retainer, or by use of a spacer. The Gap Thickness dimension will equal zero when the panel surface is flush to the support surface. For example, Gap = 0 when the underside of the panel is counter bored to accept the thickness of the stud retainer.
  2. Using the calculated total pileup for the chosen receptacle, locate your total pileup in one of the ranges in the table below and find the Stud Grip size to the left. The Stud Grip is added to the end of the stud part number. For example: in the stud part number "121J-350", the Stud Grip is "50".

RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Stud Grip 1224-735-205-Z3CT 1224-735-230-Z3CT 1224-735-255-Z3CT 1224-735-280-Z3CT
inch mm inch mm inch mm inch mm
30 .115-.139 2.92-3.53 .090-.114 2.29-2.90 .065-.089 1.65-2.26 .040-.064 1.02-1.63
35 .165-.189 4.19-4.80 .140-.164 3.56-4.17 --- --- --- ---
40 .215-.239 5.46-6.07 .190-.214 4.83-5.44 --- --- --- ---
45 .265-.289 6.73-7.34 .240-.264 6.10-6.71 --- --- --- ---
50 .315-.339 8.00-8.61 .290-.314 7.37-7.98 --- --- --- ---
55 .365-.389 9.27-9.88 .340-.364 8.64-9.25 --- --- --- ---
60 .415-.439 10.54-11.15 .390-.414 9.91-10.52 --- --- --- ---
65 .465-.489 11.81-12.42 .440-.464 11.18-11.79 --- --- --- ---
70 .515-.539 13.08-13.69 .490-.514 14.45-13.06 --- --- --- ---
75 .565-.589 14.35-14.96 .540-.564 13.72-14.40 --- --- --- ---
80 .615-.639 15.62-16.23 .590-.614 14.99-15.60 --- --- --- ---

Note: When our existing supply of Cadmium plated parts is exhausted, DFCI Solutions, Inc will no longer offer Cadmium plating as an option.

In place of the Cadmium plating, we recommend:

Clear: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Black: Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT

Yellow: Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT

The colored finishes offer no advantage over the clear other than the color, and they are more expensive.
