ST-1200 Line Size 3 Retainer - Aluminum Full Grommet

Oval Head Stud Full Grommet Picture

Click here for the Engineering Drawing
1271-3 Revision C

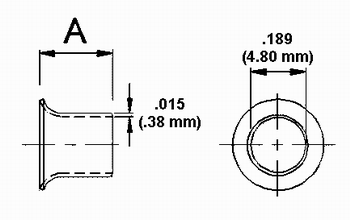

Oval Head Stud Full Grommet Dimension Drawing

For use with all ST-1200 Line studs excepting flush heads.

Part number: 1271-3(Dimension "A" For example 1271-3175 (where dimension "A" = .175)
Material: Aluminum
Weight: .0002 lb (0.09 g)

Available in lengths to fit most common panel gages.

Panel Thickness 1271 Full
Grommet
inch mm
.015 - .025 .38 - .64 1271-3175
.026 - .050 .66 - 1.27 1271-3200
.051 - .094 1.30 - 2.39 1271-3250
