ST-1200 Line Size 3 Retainer - Stainless Steel Snap Ring

Snap Ring Retainer Picture

Click here for the Engineering Drawing
1219-R Revision B

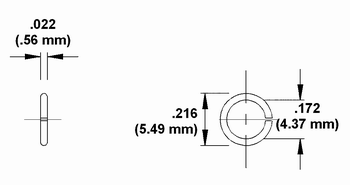

Snap Ring Retainer Dimension Drawing

Part Number: 1219-R3-SS
Material: Stainless steel, 300 series, spring temper
Weight: .00007 lb (0.03 g)
