Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!

ST-1200 Line Size 4 Receptacle - Right Angle Spring Plate

Material and :
Plate: Low carbon steel
Spring: Music wire

Finish: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

*For unplated part, change the finish at the end of the basic part number from "-Z3CT" to "-UNP". For example: 1218-P4275-UNP

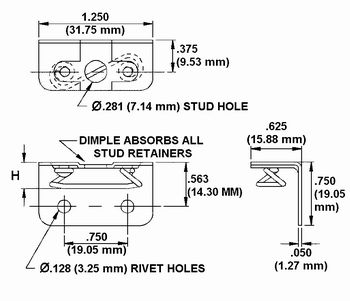

Right Angle Spring Plate Picture Right Angle Spring Plate Dimension Drawing

Dimension "H" Part Number
inch
+.015/-.010
mm
+.38/-.25
.275 6.99 1218-P4275-Z3CT
.300 7.62 1218-P4300-Z3CT

Calculating Stud Length
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Total Pileup Drawing
  1. First calculate the total pileup. Add Panel thickness + Support thickness + Gap thickness.
    NOTE: The gap is the distance between the panel and the support, and it may be the result of panel and support shape, use of a grommet or other stud retainer, or by use of a spacer. The Gap Thickness dimension will equal zero when the panel surface is flush to the support surface. For example, Gap = 0 when the underside of the panel is counter bored to accept the thickness of the stud retainer.
  2. Using the calculated total pileup for the chosen receptacle, locate your total pileup in one of the ranges in the table below and find the Stud Grip size to the left. The Stud Grip is added to the end of the stud part number. For example: in the stud part number "121J-450", the Stud Grip is "50".

Stud Grip 1218-P4300-Z3CT 1218-P4275-Z3CT
inch mm inch mm
30 .025-.049 .64-1.24 .050-.074 1.27-1.88
35 .075-.099 1.91-2.51 .100-.124 2.54-3.15
40 .125-.149 3.18-3.78 .150-.174 36.81-4.42
45 .175-.199 4.45-5.05 .200-.224 5.08-5.69
50 .225-.249 5.72-65.32 .250-.274 6.35-6.96
55 .275-.299 6.99-7.59 .300-.324 7.62-8.23
60 .325-.349 8.26-8.86 .350-.374 8.89-9.50
65 .375-.399 9.53-10.13 .400-.424 10.16-10.77
70 .425-.449 10.80-11.40 .450-.474 11.43-12.04
75 .475-.499 12.07-12.67 .500-.524 12.70-13.31
80 .525-.549 13.34-13.94 .550-.574 13.97.14.58
85 .575-.599 14.61-15.21 .600-.624 15.24-15.85
90 .625-.649 15.88-16.48 .650-.674 16.51-17.12
95 .675-.699 17.15-17.75 .700-.724 17.78-18.39
100 .725-.749 18.42-19.02 .750-.774 19.05-19.66
105 .775-.799 19.69-20.29 .800-.824 20.32-20.93
110 .825-.849 20.96-21.56 .850-.874 21.59-22.20
115 .875-.899 22.23-22.83 .900-.924 22.86-23.47
120 .925-.949 23.50-24.10 .950-.974 24.13-24.74

Note: When our existing supply of Cadmium plated parts is exhausted, DFCI Solutions, Inc will no longer offer Cadmium plating as an option.

In place of the Cadmium plating, we recommend:

Clear: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Black: Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT

Yellow: Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT

The colored finishes offer no advantage over the clear other than the color, and they are more expensive.
