ST-1200 Line Size 4 Retainers - Aluminum Full Grommet

1271 Full Grommet 1276 Full Grommet
Oval Head Stud Full Grommet Picture

Click here for the Engineering Drawing
1271-4 Revision C

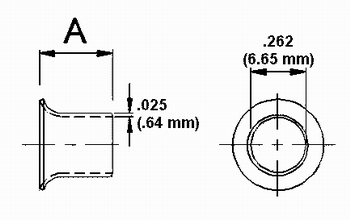

Oval Head Stud Full Grommet Dimension Drawing
Flush Head Stud Full Grommet Picture

Click here for the Engineering Drawing
1276-4 Revision A

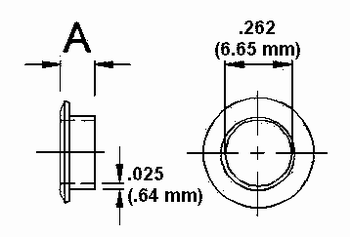

Flush Head Stud Full Grommet Dimension Drawing
For use with all ST-1200 Line studs excepting flush heads. For use with Flush Head ST-1200 Line Studs.
Part number: 1271-4 Dimension "A"
For example 1271-4175 where dimension "A" = .175
Part Number: 1276-4 Dimension "A"
For example 1276-4175 where dimension "A" = .175
Material: Aluminum Material: Aluminum

Available in lengths to fit most common panel gages.

Panel Thickness 1271 Full Grommet 1276 Full Grommet
inch mm
.015 - .025 .38 - .64 1271-4225 1276-4125
.026 - .050 .66 - 1.27 1271-4250 1276-4150
.051 - .075 1.30 - 1.91 1271-4275 1276-4175
.076 - .100 1.93 - 2.54 1271-4300 1276-4200
