ST-1200 Line Size 4 Retainer - Stainless Steel Snap Ring

Snap Ring Retainer Picture

Click here for the Engineering Drawing
1219-R Revision B

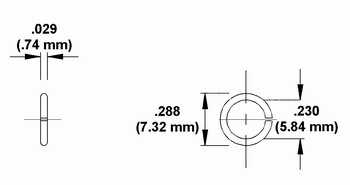

Snap Ring Retainer Dimension Drawing

Part Number: 1219-R4-SS

Material: Stainless Steel, 300 series, spring temper

Weight: .00015 lb (0.07 g)
