Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!

ST-1200 Line Size 6 Receptacle - Weld Plate

Note: The Size 6 Weld Plate Receptacle is used for the Size 65 Stud.

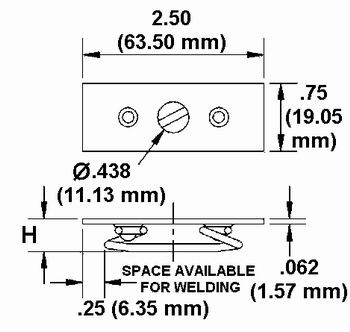

Weld Plate Receptacle Picture Weld Plate Receptacle Dimension Drawing

Spring Wire Diameter: .090 (2.29 mm)

Material:
Plate: steel
Spring: music wire
Rivets: stainless steel

Finish:
Plate: unfinished
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Optional Stainless Steel: Stainless steel is available on special order. Add the suffix "-SS" to the basic part number. (E.g., 1224-441-310-SS)
Plate and Rivets: 300-series
Spring: 17-7 PH.

Weight: .0411 lb (18.64 g)
Recommended Deflection:.031 to .074 in. (.79 to 1.88 mm).

Part Number "H" Dimension
(inch)
.010
(mm)
.25
1224-441-310-Z3CT .310 7.87
1224-441-335-Z3CT .335 8.51
1224-441-360-Z3CT .360 9.14
1224-441-385-Z3CT .385 9.78

Calculating Stud Length
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Total Pileup Drawing
  1. First calculate the total pileup. Add Panel thickness + Support thickness + Gap thickness.
    NOTE: The gap is the distance between the panel and the support, and it may be the result of panel and support shape, use of a grommet or other stud retainer, or by use of a spacer. The Gap Thickness dimension will equal zero when the panel surface is flush to the support surface. For example, Gap = 0 when the underside of the panel is counter bored to accept the thickness of the stud retainer.
  2. Using the calculated total pileup for the chosen receptacle, locate your total pileup in one of the ranges in the table below and find the Stud Grip size to the left. The Stud Grip is added to the end of the stud part number. For example: in the stud part number "121J-6550-Z3CT", the Stud Grip is "50".

English
(inch)
Stud Grip 1224-441-385-Z3CT 1224-441-360-Z3CT 1224-441-335-Z3CT 1224-441-310-Z3CT
40 .055-.079    .080-.104    .105-.129    .130-.154
50 .155-.179    .180-.204    .205-.229    .230-.254
60 .255-.279    .280-.304    .305-.329    .330-.354
70 .355-.379    .380-.404    .405-.429    .430-.454
80 .455-.479    .480-.504    .505-.529    .530-.554
90 .555-.579    .580-.604    .605-.629    .630-.654
100 .655-.679    .680-.704    .705-.729    .730-.754
110 .755-.779    .780-.804    .805-.829    .830-.854
120 .855-.879    .880-.904    .905-.929    .930-.954
Metric
(mm)
Stud Grip 1224-441-385-Z3CT 1224-441-360-Z3CT 1224-441-335-Z3CT 1224-441-310-Z3CT
40 1.40-2.01 2.03-2.64 2.67-3.28 3.30-3.91
50 3.94-4.55 4.57-5.18 5.21-5.82 5.84-6.45
60 6.48-7.09 7.11-7.72 7.75-8.36 8.38-8.99
70 9.02-9.63 9.65-10.26 10.29-10.90 10.92-11.53
80 11.56-12.17 12.19-12.80 12.83-13.44 13.46-14.07
90 14.10-14.71 14.73-15.34 15.37-15.98 16.00-16.38
100 16.64-17.25 17.27-17.88 17.91-18.52 18.54-19.15
110 19.18-19.79 19.81-20.42 20.45-21.06 21.08-21.69
120 21.72-22.33 22.35-22.96 22.99-23.60 23.62-24.23

Note: When our existing supply of Cadmium plated parts is exhausted, DFCI Solutions, Inc will no longer offer Cadmium plating as an option.

In place of the Cadmium plating, we recommend:

Clear: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Black: Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT

Yellow: Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT

The colored finishes offer no advantage over the clear other than the color, and they are more expensive.
