ST-1200 Line Size 6 Retainer - Plastic Half Grommet

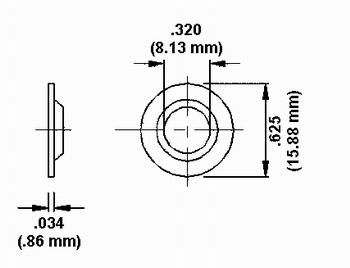

Plastic Half Grommet Picture Plastic Half Grommet Dimension Drawing

For use with all ST-1200 Line Studs

Part Number Color Material
127P-6B Black Thermoplastic
127P-6W White Thermoplastic
127P-6 Natural Polyethylene
Note: Color Black is the standard part.

Compressed Grommet Thickness: 0.045 (1.14 mm)

Weight:.00021 lb (0.10 g)

Push-out strength:
Standard panel hole: 50 lb min.
Oversize panel hole: 16 lb min.

The Size 6 Plastic Grommet is used with the Size 65 stud.
