ST-1200 Line Size 7 Retainer - Stainless Steel Snap Ring

Retaining Ring Picture

Click here for the Engineering Drawing
1219-R Revision B

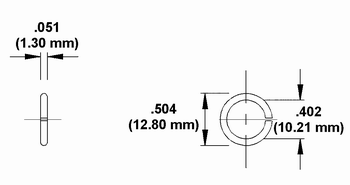

Retaining Spring Dimension Drawing

Part Number: 1219-R7-SS

Material: Stainless steel, 300 series, spring temper

Weight: .00081 lb (0.37 g)

The Size 7 Stainless Steel Snap Ring is used with the Size 65 Stud.
