ST-1200 Line Size 7 Receptacle - Weld Plate

The information on the ST-1200 Size 7 products are provided for existing applications. For new applications, please use the Size 65 products.

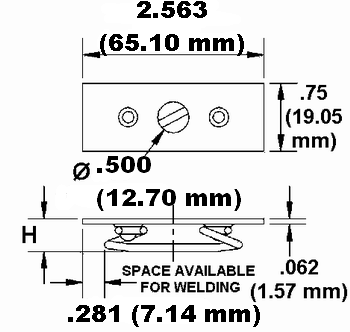

Weld Plate Receptacle Picture Weld Plate Receptacle Dimension Drawing

Spring Wire Diameter: .100 (2.54 mm)

Standard Material:
Plate: Steel
Spring: Music Wire
Rivets: Stainless Steel

Finish:
Plate: unfinished
Spring:
Rivets: Stainless Steel

Optional Stainless Steel: Stainless steel is available on special order. Change the finish suffix "-SS" to the part number. (E.g., 1224-422-310-SS)
Plate and rivets: 300-series,
Spring: 17-7 PH.

Weight: .0428 lb (19.41 g)
Recommended Deflection:.031 to .074 in. (.79 to 1.88 mm).

Part Number "H" Dimension
(inch)
± .010
(mm)
± .25
1224-442-310-Z3CT .310 7.87
1224-442-335-Z3CT .335 8.51
1224-442-360-Z3CT .360 9.14
1224-442-385-Z3CT .385 9.78

Calculating Stud Length
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Total Pileup Drawing
  1. First calculate the total pileup. Add Panel thickness + Support thickness + Gap thickness.
    NOTE: The gap is the distance between the panel and the support, and it may be the result of panel and support shape, use of a grommet or other stud retainer, or by use of a spacer. The Gap Thickness dimension will equal zero when the panel surface is flush to the support surface. For example, Gap = 0 when the underside of the panel is counter bored to accept the thickness of the stud retainer.
  2. Using the calculated total pileup for the chosen receptacle, locate your total pileup in one of the ranges in the table below and find the Stud Grip size to the left. The Stud Grip is added to the end of the stud part number. For example: in the stud part number "121J-6550-Z3CT", the Stud Grip is "50".

English
(inch)
Stud Grip 1224-441-385-Z3CT 1224-441-360-Z3CT 1224-441-335-Z3CT 1224-441-310-Z3CT
40 .055-.079 .080-.104 .105-.129 .130-.154
50 .155-.179 .180-.204 .205-.229 .230-.254
60 .255-.279 .280-.304 .305-.329 .330-.354
70 .355-.379 .380-.404 .405-.429 .430-.454
80 .455-.479 .480-.504 .505-.529 .530-.554
90 .555-.579 .580-.604 .605-.629 .630-.654
100 .655-.679 .680-.704 .705-.729 .730-.754
110 .755-.779 .780-.804 .805-.829 .830-.854
120 .855-.879 .880-.904 .905-.929 .930-.954
Metric
(mm)
Stud Grip 1224-441-385-Z3CT 1224-441-360-Z3CT 1224-441-335-Z3CT 1224-441-310-Z3CT
40 1.40-2.01 2.03-2.64 2.67-3.28 3.30-3.91
50 3.94-4.55 4.57-5.18 5.21-5.82 5.84-6.45
60 6.48-7.09 7.11-7.72 7.75-8.36 8.38-8.99
70 9.02-9.63 9.65-10.26 10.29-10.90 10.92-11.53
80 11.56-12.17 12.19-12.80 12.83-13.44 13.46-14.07
90 14.10-14.71 14.73-15.34 15.37-15.98 16.00-16.38
100 16.64-17.25 17.27-17.88 17.91-18.52 18.54-19.15
110 19.18-19.79 19.81-20.42 20.45-21.06 21.08-21.69
120 21.72-22.33 22.35-22.96 22.99-23.60 23.62-24.23
