Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!

SU-2300 Line Size 35
Receptacles

SU-2300 Line receptacles are enclosed to protect the parts, prevent the loss of plating chips and to provide a smooth stud entry.

Either Rigid or Floating SU-2300 Line Receptacles are available. The Floating feature is available to compensate for misalignment.

Rigid:
Part Number 2350-18-Z3CT

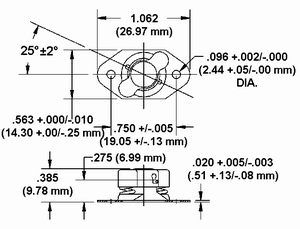

Rigid Receptacle Picture Rigid Receptacle Dimension Drawing

Click here for the Engineering Drawing
2350 Revision D

Standard Materials:
Receptacle base and spring cap: steel
Spring and pin: Music wire

Weight: .0071 lb (3.22 g)

Finish:
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Clear Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE I, CLASS 2, CLEAR
Suffix: -C3C

Floating Type:
Part Number 2350-18F-Z3CT
Floating Type:
Part Number 2350-18F-24734
Material: same as 2350-18-Z3CT
Weight: .0072 lb (3.27 g)

Float: .050 all directions (otherwise same as 2350-18-C3C)

Floating Receptacle Dimension Drawing

Click here for the Engineering Drawing
2350F Revision E

This receptacle includes two 2350-18F-5-Z3CT spacers.

Floating Receptacle with Spacers Picture
For thin paneling, .032" (0.81 mm) or less. (otherwise same as 2350-18-Z3CT)

Material: same as 2350-18-Z3CT

Weight: .0072 lb (3.27 g)

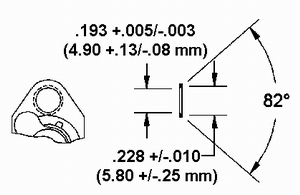

Thin Panel Floating Receptacle Dimension Drawing

This receptacle includes two 2350-18F-24734-1 spacers.

Floating Receptacle With Spacers Picture
Spacer:
Part Number 2350-18F-5-Z3CT
Spacer:
Part Number 2350-18F-24734-1
Material: Same as Receptacle Base

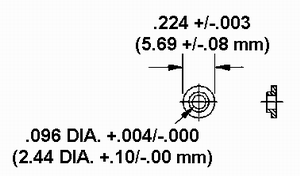

Floating Receptacle Spacers Dimension Drawing

Two included with 2350-18F-Z3CT

Material: Same as receptacle base.

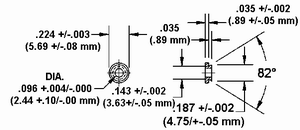

Thin Panel Floating Receptacle Spacers Dimension Drawing

Two included with 2350-18F-24734.
