Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!

SU-2300 Line Size 5
Receptacles

SU-2300 Line receptacles are enclosed to protect the parts, prevent the loss of plating chips and to provide a smooth stud entry.

Either Rigid or Floating SU-2300 Line Receptacles are available. The Floating feature is available to compensate for misalignment.

Rigid Floating

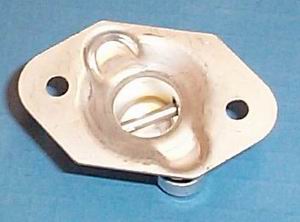

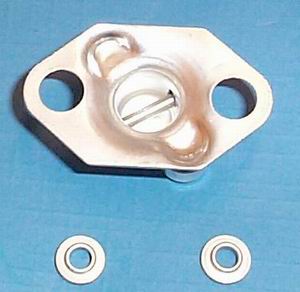

Rigid Receptacle Picture Floating Receptacle with Spacers Picture
Part Number:
2500-18-Z3CT

Click here for the Engineering Drawing
2500 Revision B

Weight: .0171 lb (7.76 g)

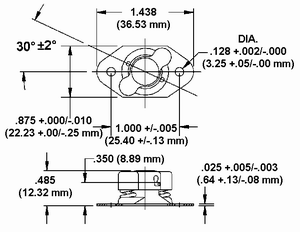

Rigid Receptacle Dimension Drawing

Part Number:
2500-18F-Z3CT

Click here for the Engineering Drawing
2500F Revision B

Weight: .0183 lb (8.30 g)

Float: .074 in. (1.88 mm) all directions

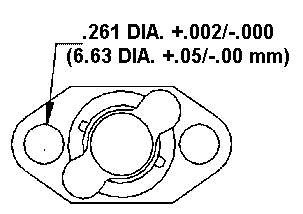

Floating Receptacle Dimension Drawing

Standard Materials:
Receptacle base and spring cap: steel
Spring and pin: Music wire

Finish:
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Clear Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE I, CLASS 2, CLEAR
Suffix: -C3C

Spacer
Part Number:
2500-18F-5-Z3CT

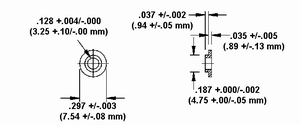

Floating Receptacle Spacers Dimension Drawing

Two included with 2500-18F-Z3CT receptacle.
