Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!

UN-5700 Line Size 3

Receptacles

Rigid
Part Number: 5718-A3-ACNC
Floating
Part Number: 5718-FA3-ACNC

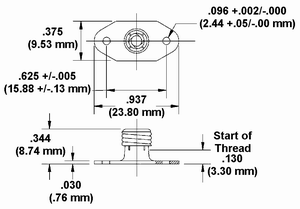

Rigid Threaded Receptacle Dimension Drawing

Click here for the Engineering Drawing
5718-A3 Revision C

Receptacle includes 2 5718-F3-3-Z3CT spacers

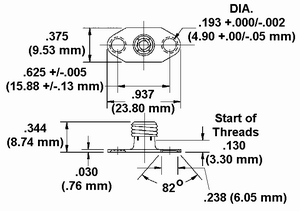

Floating Threaded Receptacle Dimension Drawing

Click here for the Engineering Drawing
5718-FA3 Revision A

Material:
Receptacle Base: Aluminum alloy
Spring: music wire

Finish:
Receptacle Base: anodized
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .0026 lb (1.18 g)

Material:
Receptacle Base: Aluminum alloy
Spring: music wire

Finish:
Receptacle Base: anodized
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .0033 lb (1.50 g) (including 2 spacers)
Float: .025 in (.64 mm) all directions

Press Fit
Part Number: 5718-FP3-ACNC
Spacer
Part Number: 5718-F3-3-Z3CT

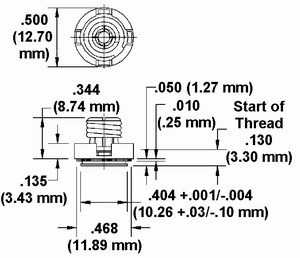

Press-In Threaded Receptacle Dimension Drawing For use with 5718-FA3-ACNC receptacle
2 supplied with each 5718-FA3-ACNC receptacle

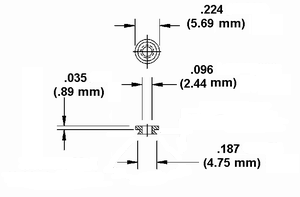

Spacer for Floating Threaded Receptacle Dimension Drawing

Click here for the Engineering Drawing
5718-F3-3 Revision B

Material:
Ring: carbon spring steel, heat treated.
Retainer: steel, heat treated.
Spring: music wire.
Receptacle Base: aluminum alloy

Finish:
Receptacle Base: anodized
Ring, retainer, and spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows:
Ring, retainer, and spring: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .00577 lb (2.62 g)

Float: .015 in (.38 mm) all directions.

Material: Steel,

Finish:
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: See Floating Receptacle Above.
