UN-5700 Line Size 4

Receptacles

Rigid
Part Number: 5718-A4-ACNC
Floating
Part Number: 5718-FA4-ACNC

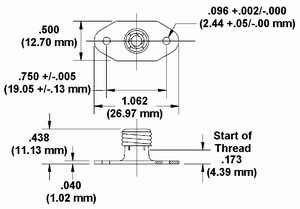

Rigid Threaded Receptacle Dimension Drawing Receptacle includes 2 5718-F4-3-Z3CT spacers

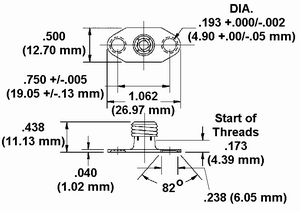

Floating Threaded Receptacle Dimension Drawing
Material:
Receptacle Base: Aluminum alloy
Spring: music wire

Finish:
Receptacle Base: anodized
Spring: Zinc Trivalent Clear .0002 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 1, Clear
Suffix: -Z2CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .00516 lb (2.34 g)

Material:
Receptacle Base: Aluminum alloy, anodized.
Spring: music wire

Finish:
Receptacle Base: anodized
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .00593 lb (2.69 g) (including 2 spacers)

Float: .025 in (0.64 mm) all directions

Press Fit
Part Number: 5718-FP4-ACNC
Spacer
Part Number: 5718-F4-3-Z3CT

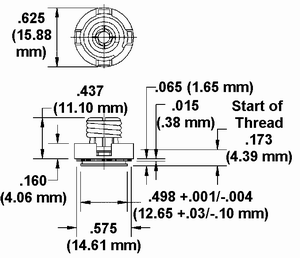

Press-In Threaded Receptacle Dimension Drawing

Click here for the Engineering Drawing
5718-FP4 Revision B

For use with 5718-FA4-ACNC receptacle
2 supplied with each 5718-FA4-ACNC receptacle

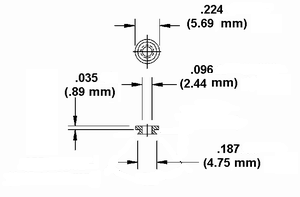

Floating Threaded Receptacle Spacers Dimension Drawing

Material:
Ring: carbon spring steel, heat treated.
Retainer: steel, heat treated.
Spring: music wire.
Receptacle Base: aluminum alloy

Finish:
Receptacle Base: anodized
Ring, retainer, and spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows:
Ring, retainer, and spring: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .01156 lb (5.24 g)

Float: .015 in (0.38 mm) all directions

Material: Steel

Finish: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: See Floating Receptacle above
