Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!

UN-5700 Line Size 5

Receptacles

Rigid
Part Number: 5718-5-ACNC
Floating
Part Number: 5718-F5-ACNC

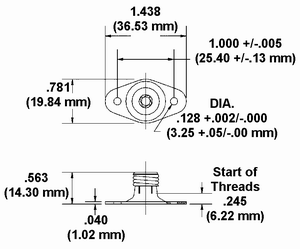

Rigid Threaded Receptacle Dimension Drawing

Click here for the Engineering Drawing
5718-5 Revision -

Receptacle includes 2 5718-F5-3-Z3CT spacers

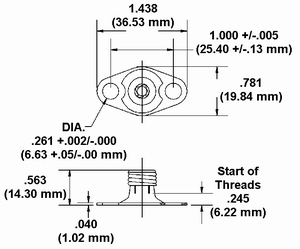

Floating Threaded Receptacle Dimension Drawing
Material:
Receptacle Base: Aluminum alloy
Spring: music wire

Finish:
Receptacle Base: anodized
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned spring finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .0092 lb (4.17 g)

Material:
Receptacle Base: Aluminum alloy, anodized.
Spring: music wire

Finish:
Receptacle Base: anodized
Spring: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned spring finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: .01000 lb (4.54 g) (including 2 spacers)

Float: .037 in (0.94 mm) all directions.

Spacer
Part Number: 5718-F5-3-Z3CT
For use with 5718-F5-ACNC receptacle
2 supplied with each 5718-F5-ACNC receptacle

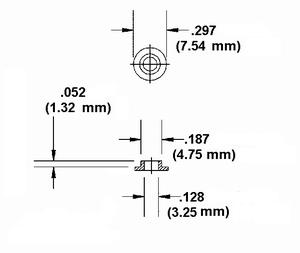

Dimension Drawing of Spacer for Floating Receptacle
Material: Steel

Finish: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

The above mentioned finish will be supplied as the standard finish upon depletion of existing stock which are finished as follows: Cadmium Electroplated .0003 thick, Yellow Chromate (Obsolete)
Specification(s): QQ-P-416, TYPE II, CLASS 2, YELLOW
Suffix: -C3Y

Weight: See floating receptacle above.
