UN-5700 Line Size 5

Retainers:

Retaining Ring
Part Number: 5723-A516-SS
Retaining Ring Picture used for Threaded Studs

Click here for the Engineering Drawing
5723-A5 Revision C

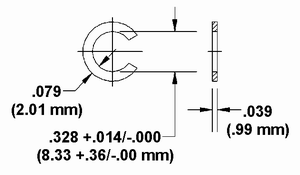

Retaining Ring Dimension Drawing

Material:Stainless Steel

Weight:.00094 lb (0.43 g)
