DP-6100 Line Pawl Latches - Series 6137

Pawl Latch Product Picture

Low-cost quarter turn latching

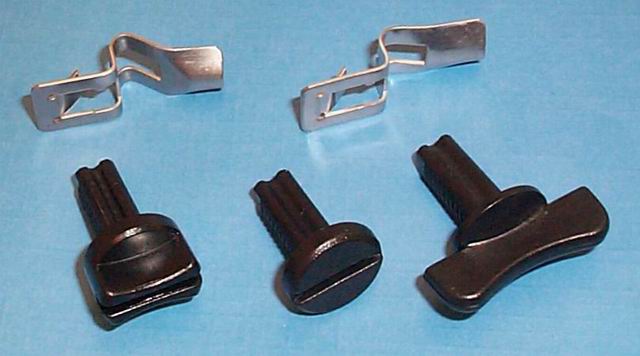

6137 Series Pawl Latches provide basic quarter-turn latching at low installed cost. Studs, in black acetal plastic, are available with attractive wing, knob, or slotted heads. One-step installation consists of pushing the spring-steel pawl onto the stud and up against the underside of the panel. One-way tabs on the pawl maintain its position and provide secure stud retention. Latch closes under spring tension. No spacers are needed.

Stud, Wing Head
6137-1W		 Stud, Slotted Knob
6137-1M
Wing Head Stud Dimension Drawing Slotted Knob Stud Dimension Drawing
Stud, Slotted
6137-1S		 Pawl
6137-2S
6137-2L
Slotted Stud Dimension Drawing Pawl Dimension Drawing

Stud Material: Black Acetal copolymer. Material burn rating code UL94HB.
ASTM E-162. F.S.I. = 130
-40°F (-40°C) to +194°F (+90°C)
+248°F (120°C) short periods.

Pawl Material: Type 410 Stainless Steel Condition A.

Fastener Selection and Installation

  1. Choose head style with part number
  2. Select the correct pawl based upon your D Dimension
 Recommended Pawl Deflection
Latch Locked

.010" (0.25 mm) Locked Tension 2 lb
to
.135" (3.43 mm) Locked Tension 8 lb
6137-2S 6137-2L
Dimension Drawing Dimension Drawing
D Dimension Use Pawl
Part Number
.010" to .125" 0.25 to 3.18 mm 6137-2S
.125" to .205" 3.18 to 5.21 mm 6137-2L
6137-2S and 6137-2L
Installation Drawing
