PX-1600 Bracket Receptacle Installation

Size 4

The mounting holes in the 4mm Bracket Receptacle are:

  • 3.3 mm (.130 in) in diameter.
  • 18.0 mm (.709 in) center to center.
  • 12.0 mm (.472 in) below the top edge of the bracket.

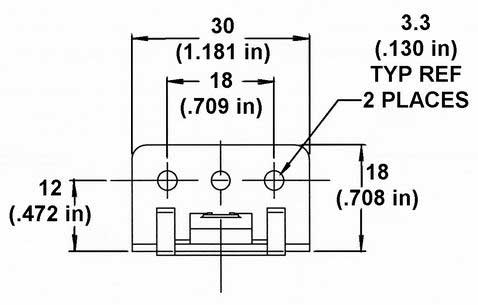

 PX-1600 4mm Bracket Receptacle Mounting Drawing

Size 6

The mounting holes in the 6mm Bracket Receptacle are:

  • 4.2 mm (.165 in) in diameter.
  • 23.0 mm (.906 in) center to center.
  • 14 mm (.551 in) below the top edge of the bracket.

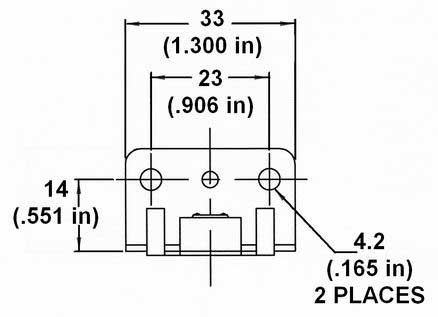

 PX-1600 6mm Bracket Receptacle Mounting Drawing
