PX-1600 Slip-On Receptacle Installation

Size 4

Support Range
.7 mm to 2.5 mm
(.028 in to .098 in)

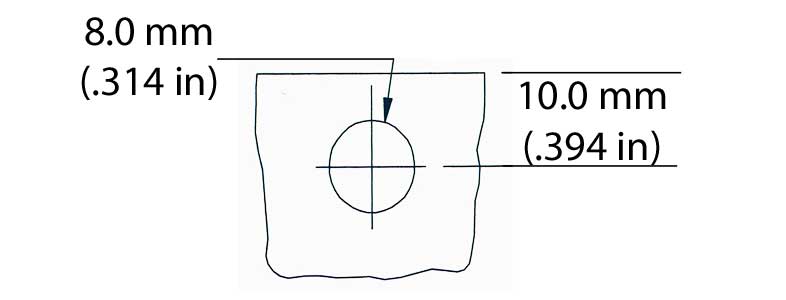

4mm Slip-On Support Prep Drawing

Size 6

Support Range
.7 mm to 3.2 mm
(.028 in to .126 in)

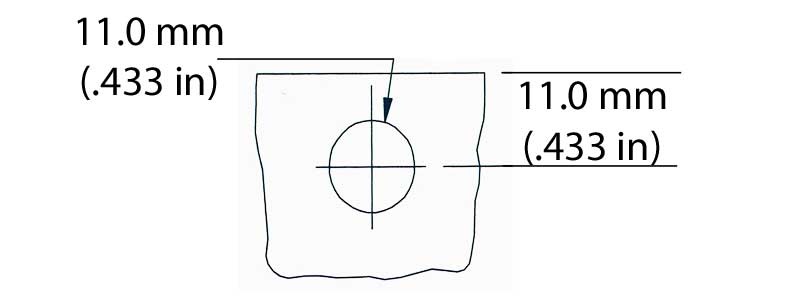

6mm Slip-On Support Prep Drawing
