SL-8400 Line

8404 Slide Latch Installation

  1. Place the latch body, pawl end first, into the panel hole.
  2. Push the back (spring) end of the latch body into the hole.
  3. Slide the appropriate snap clip (see the table) onto the latch body underside, starting at the pawl end.
Hole Dimension and Location

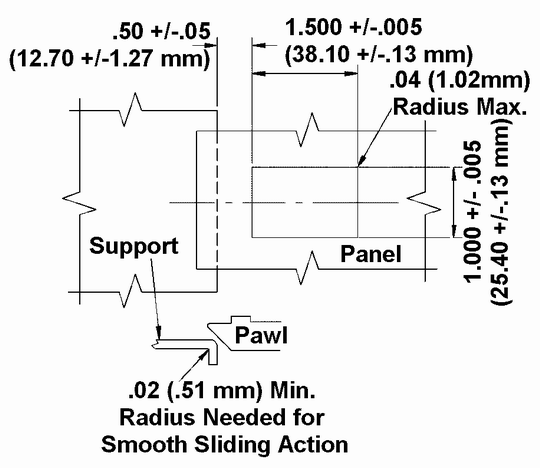

Push-to-Lock Slide Latch Installation Panel Preparation Drawing

Snap Clip

"P"
Panel Thickness
"T"
Snap Clip Thickness
Snap Clip Part Number
inch mm inch mm
.043-.051 1.09 - 1.30 .125 3.18 8404-912-BK
.055-.067 1.40 - 1.70 .110 2.79 8404-916-BK
.071-.083 1.80 - 2.11 .095 2.41 8404-920-BK

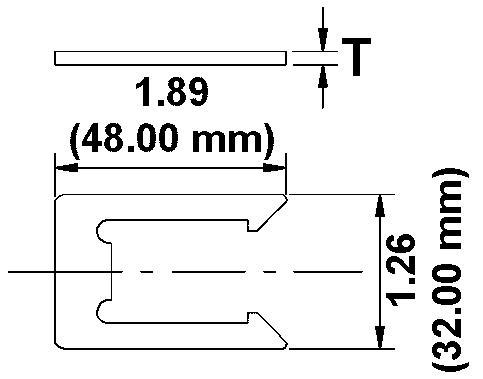

Push-to-Latch Slide Latch Snap Clip Dimension Drawing
