ST-1200 Line Receptacle Support Preparation

Slip-On

Size 4

Support Thickness H SL4 Part Number A B Z
.036" to .128" 280 1219-L4280-Z3CT .280" .260" .400"
305 1219-L4305-Z3CT .305" .285" .400"

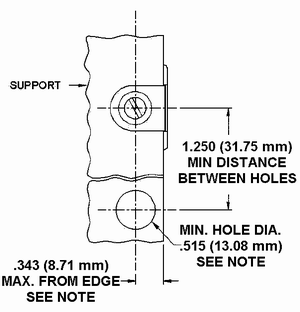

Slip-On Receptacle Minimum Clearance Drawing Slip-On Receptacle Installation Drawing with Dimensions
NOTE: Panel misalignment can be tolerated by increasing the support hole to .547" and decreasing the hole center to edge distance by .328" Slip-On Receptacle Installation Drawing

Size 5

Support Thickness "H" SL5 Part Number A B Z
.036" to .128" 280 1219-L5280-Z3CT .280 .260 .400
305 1219-L5305-Z3CT .305 .285 .430
330 1219-L5330-Z3CT .330 .310 .405
355 1219-L5355-Z3CT .355 .335 .475
.129" to .220" 280 1219-L5Y280-Z3CT .280 .260 .400
305 1219-L5Y305-Z3CT .305 .285 .430
330 1219-L5Y330-Z3CT .330 .310 .405
355 1219-L5Y355-Z3CT .355 .335 .475

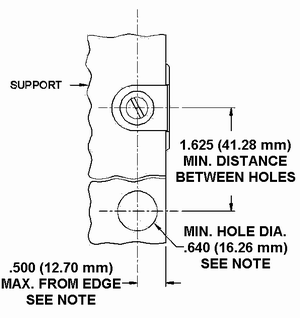

Slip-On Receptacle Minimum Clearance Drawing Slip-On Receptacle Installation Drawing
NOTE: Panel misalignment can be tolerated by increasing the support hole to .703" and decreasing the hole center to edge distance to .450". Slip-On Receptacle Installation Drawing
