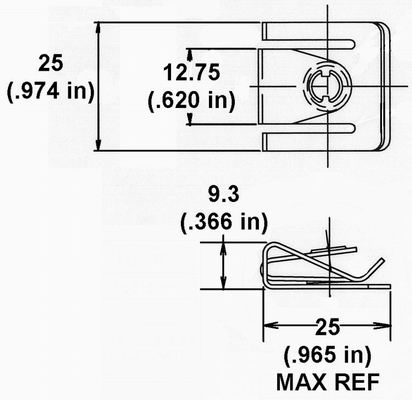

PX-1600 Size 6 mm Slip-On Receptacle
| Part Number | Finish |
| 1633-6300-Z3CT |
(Standard Finish) |
| 1633-6300-Z3YT
Discontinued when current inventory is consumed. |
|
| 1633-6300-Z3BT | |
| 1633-6300-ZFBT
Discontinued when current inventory is consumed. |
|
|
|
Material: Spring Steel
Mechanical:
Maximum Load without Distortion: 50 lb.
Maximum Torque: 31 in.-lb.
Support Range: 0.7 mm to 3.2 mm (.027 in to .126 in)
|
|
|

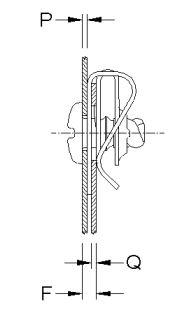

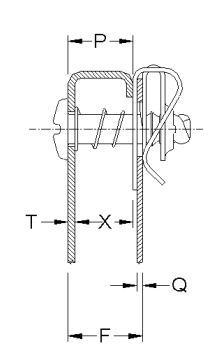

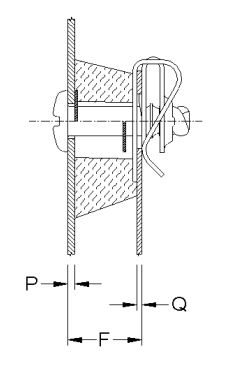

| F = P + Q + 0.8 mm (.031 in) | F = P + Q + GASKET | F = P + Q + 0.8 mm (.031 in) |
Calculate F Dimension
Using the table below, find the F Dimension range that applies to your calculated F range. The "G" for the Stud Part Number is stated to the right of the applicable F Dimension range.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
