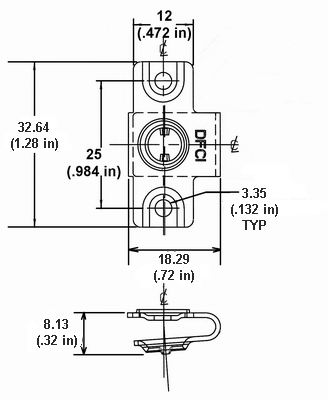

PX-1600 Size 6 mm Rivet-On Receptacle
| Part Number |
Finish |
| 1633-6400-Z3CT |
(Standard Finish)
|
| 1633-6400-Z3YT
Discontinued when current inventory is consumed.
|
|
| 1633-6400-Z3BT |
|
| 1633-6400-ZFBT
Discontinued when current inventory is consumed.
|
|
Material: Spring Steel
Mechanical:
Maximum Load without Distortion: 54 lb.
Maximum Torque: 31 in.-lb.
|
|
|

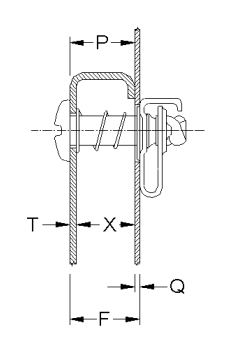

| F = P + Q |

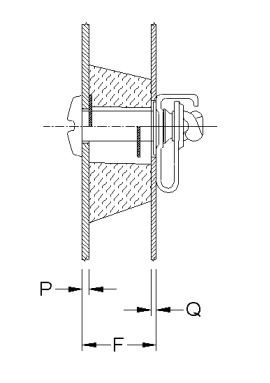

F = P + Q + GASKET |

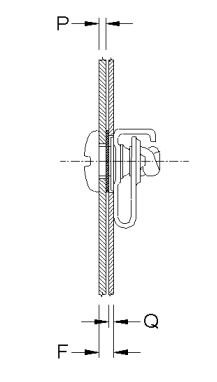

F = P + Q + 0.5 mm (0.020 in) |
Calculate F Dimension
Using the table below, find the F Dimension range that applies to
your calculated F range. The "G" for the Stud Part
Number needed is stated to the right of the applicable F Dimension
range.
|
6 mm Rivet Plate Receptacle Stud Selection Table
|
| F Dimension |
"G" |
| mm |
in |
| 1.5-2.4 |
.059-.094 |
09 |
| 2.5-3.4 |
.098-.134 |
10 |
| 3.5-4.4 |
.138-.173 |
11 |
| 4.5-5.4 |
.177-.213 |
12 |
| 5.5-6.4 |
.217-.252 |
13 |
| 6.5-7.4 |
.256-.291 |
14 |
| 7.5-8.4 |
.295-.331 |
15 |
| 8.5-9.4 |
.335-.370 |
16 |
| 9.5-10.4 |
.374-.409 |
17 |
| 10.5-11.4 |
.413-.449 |
18 |
| 11.5-12.4 |
.453-.488 |
19 |
| 12.5-13.4 |
.492-.528 |
20 |
| 13.5-14.4 |
.531-.567 |
21 |
| 14.5-15.4 |
.571-.606 |
22 |
| 15.5-16.4 |
.610-.646 |
23 |
|
| F Dimension |
"G" |
| mm |
in |
| 16.5-17.4 |
.650-.685 |
24 |
| 17.5-18.4 |
.689-.724 |
25 |
| 18.5-19.4 |
.728-.764 |
26 |
| 19.5-20.4 |
.768-.803 |
27 |
| 20.5-21.4 |
.807-.843 |
28 |
| 21.5-22.4 |
.846-.882 |
29 |
| 22.5-23.4 |
.886-.921 |
30 |
| 23.5-24.4 |
.925-.961 |
31 |
| 24.5-25.4 |
.965-1.000 |
32 |
| 25.5-26.4 |
1.004-1.039 |
33 |
| 26.5-27.4 |
1.043-1.078 |
34 |
| 27.5-28.4 |
1.083-1.118 |
35 |
| 28.5-29.4 |
1.122-1.157 |
36 |
| 29.5-30.4 |
1.161-1.197 |
37 |
| 30.5-31.4 |
1.201-1.236 |
38 |
|
|
