To order, add up the thickness of the panels being joined together,
as shown here. Next,
locate the total thickness on the chart.

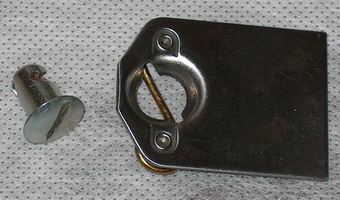

5/16" Oval Head Fastener and
1" Spacing Weld Plate Receptacle
Total
Material
Thickness |
Stud
Grip |
Spring
Height |
|
|
|
|
5/16"
Oval Head
Part Number |
1" Spacing
Weld Plate
Part Number* |
*
4636-24945-360-14S-PAS');
displayRowNoPN('.089"-.122"','.400"','.335"','4639-15-400-Z3CT','4639-24945-335-Z3CT*
4639-24945-335-14S-PAS');
displayRowNoPN('.114"-.147"','.400"','.310"','4639-15-400-Z3CT','4639-24945-310-Z3CT*
4639-24945-310-14S-PAS');
displayRowNoPN('.139"-.172"','.400"','.285"','4639-15-400-Z3CT','4639-24945-285-Z3CT*
4639-24945-285-14S-PAS');
displayRowNoPN('.164"-.197"','.500"','.360"','4639-15-500-Z3CT','4639-24945-360-Z3CT*
4639-24945-360-14S-PAS');
displayRowNoPN('.189"-.222"','.500"','.335"','4639-15-500-Z3CT','4639-24945-335-Z3CT*
4639-24945-335-14S-PAS');
displayRowNoPN('.214"-.247"','.550"','.360"','4639-15-550-Z3CT','4639-24945-360-Z3CT*
4639-24945-360-14S-PAS');
displayRowNoPN('.239"-.272"','.550"','.335"','4639-15-550-Z3CT','4639-24945-335-Z3CT*
4639-24945-335-14S-PAS');
displayRowNoPN('.264"-.297"','.550"','.310"','4639-15-550-Z3CT','4639-24945-310-Z3CT*
4639-24945-310-14S-PAS');
?>
Note: On the Weld Plate Receptacle, only the Spring
is plated. The plate is not plated to allow for welding.
* Upon depletion of existing stock, the spring
will change from zinc plated (-Z3CT) to type 316 Stainless
Steel Passivated (-14S-PAS).
|
