Racex® Line Round Disk
Self Ejecting
Special pricing is being offered for a limited time.
Scroll down for details.
This new design with the Round Disk provides the following
improvements over previous designs:
-
The larger Round Disk provides an advantage on weak
materials by spreading the fastener's tensile load
over a larger area.
-
The extreme ejection on 4639-CR55-xxx-Z3CT stud assemblies
is a special advantage on curved or sliding panels.
-
This Hex/Slotted RACEX® stud assembly has a slot and
hex recess allowing for operation with either a standard
screw driver or a hex key.
-
Use of a hex key reduces the likelihood of slipping and
damaging the surrounding panel.

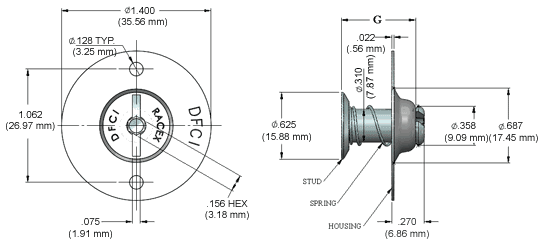

| 4639-CR55-xxx-Z3CT |
|
| Stud Assembly |
G (Grip) |
Weight |
Special Pricing* |
| inch |
mm |
lb |
g |
| 4639-CR55-400-Z3CT |
.400 |
10.16 |
.0150 |
6.80 |
$0.99 each |
| 4639-CR55-500-Z3CT |
.500 |
12.70 |
.0179 |
8.12 |
$0.99 each |
| 4639-CR55-550-Z3CT |
.550 |
13.97 |
--- |
--- |
$0.99 each |
| 4639-CR55-600-Z3CT |
.600 |
15.24 |
.0204 |
9.25 |
$0.99 each |
|
* This special pricing is being offered for a limited time.
4639-CR55-xxx-Z3CT stud assemblies are sold with the stud and
ejector spring secured in the mounting plate.
The available receptacles for the 4639-CR55-xxx-Z3CT are
limited to 4639-195-xxx-14S-PAS springs and the
4639-24945-xxx-14S-PAS weld plate shown below.
|
4639-CR55-xxx-Z3CT
|
|
Spring Material and Finish: Stainless Steel, passivated.
Total
Thickness |
Stud Assembly
|
S-Spring
|
| inch |
mm |
| .120-.149 |
3.05-3.78 |
4639-CR55-400-Z3CT |
4639-195-275-14S-PAS |
| .150-.174 |
3.81-4.42 |
4639-CR55-400-Z3CT |
4639-195-250-14S-PAS |
| .175-.199 |
4.45-5.05 |
4639-CR55-400-Z3CT |
4639-195-225-14S-PAS |
| .200-.224 |
5.08-5.69 |
4639-CR55-400-Z3CT |
4639-195-200-14S-PAS |
| .225-.249 |
5.72-6.32 |
4639-CR55-500-Z3CT |
4639-195-275-14S-PAS |
| .250-.275 |
6.35-6.99 |
4639-CR55-500-Z3CT |
4639-195-250-14S-PAS |
| .275-.299 |
6.99-7.59 |
4639-CR55-500-Z3CT |
4639-195-225-14S-PAS |
| .300-.324 |
7.62-8.23 |
4639-CR55-500-Z3CT |
4639-195-200-14S-PAS |
| .325-.349 |
8.26-8.86 |
4639-CR55-600-Z3CT |
4639-195-275-14S-PAS |
| .350-.374 |
8.89-9.50 |
4639-CR55-600-Z3CT |
4639-195-250-14S-PAS |
| .375-.399 |
9.53-10.13 |
4639-CR55-600-Z3CT |
4639-195-225-14S-PAS |
|
| Spring Part Number |
Spring Height |
Special Pricing* |
| in |
mm |
| 4639-195-200-14S-PAS |
.200 |
5.08 |
$0.25 each |
| 4639-195-225-14S-PAS |
.225 |
5.72 |
$0.25 each |
| 4639-195-250-14S-PAS |
.250 |
6.35 |
$0.25 each |
| 4639-195-275-14S-PAS |
.275 |
6.99 |
$0.25 each |
|
* This special pricing is being offered for a limited time and
is only good with the purchase of an equal number of these Racex®
fasteners.
1219-A5 receptacle springs are riveted to the support.
See the1219-A5 receptacles page for
complete specifications, including finish.

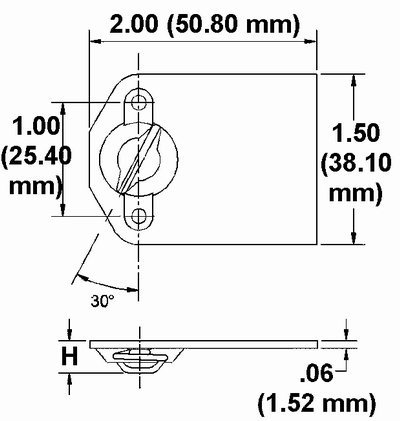

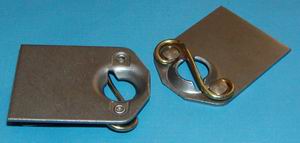

4369-24945-xxx-14S-PAS Weld Plate Receptacle
The 4639-24945-xxx-14S-PAS weld plate has a stud entry hole especially designed
to accept the 4639-CR55-xxx-Z3CT stud assembly. Extra length permits bending
to fit a variety of applications.
|
Weld Plate Material and Finish: Cold rolled steel, unplated.
Spring Material and Finish: Stainless Steel, passivated.
|
Total
Thickness |
Stud Assembly
|
WeldPlate
|
| inch |
mm |
| .032-.064 |
.81-1.63 |
4639-CR55-400-Z3CT |
4639-24945-360-14S-PAS |
| .065-.089 |
1.65-2.26 |
4639-CR55-400-Z3CT |
4639-24945-335-14S-PAS |
| .090-.114 |
2.29-2.90 |
4639-CR55-400-Z3CT |
4639-24945-310-14S-PAS |
| .115-.139 |
2.92-3.53 |
4639-CR55-400-Z3CT |
4639-24945-285-14S-PAS |
| .140-.164 |
3.56-4.17 |
4639-CR55-500-Z3CT |
4639-24945-360-14S-PAS |
| .165-.189 |
4.19-4.80 |
4639-CR55-500-Z3CT |
4639-24945-335-14S-PAS |
| .190-.214 |
4.83-6.44 |
4639-CR55-500-Z3CT |
4639-24945-310-14S-PAS |
| .215-.239 |
5.46-6.07 |
4639-CR55-500-Z3CT |
4639-24945-285-14S-PAS |
| .240-.264 |
6.10-6.71 |
4639-CR55-600-Z3CT |
4639-24945-360-14S-PAS |
| .265-.289 |
6.73-7.34 |
4639-CR55-600-Z3CT |
4639-24945-335-14S-PAS |
| .290-.314 |
7.37-7.98 |
4639-CR55-600-Z3CT |
4639-24945-310-14S-PAS |
| .315-.339 |
8.00-8.61 |
4639-CR55-600-Z3CT |
4639-24945-285-14S-PAS |
|
Weld Plate
Part Number |
Plate
Dimension "H" |
Special Pricing* |
| inch |
mm |
| 4639-24945-285-14S-PAS |
.285 |
7.24 |
$0.45 each |
| 4639-24945-310-14S-PAS |
.310 |
7.87 |
$0.45 each |
| 4639-24945-335-14S-PAS |
.335 |
8.51 |
$0.45 each |
| 4639-24945-360-14S-PAS |
.360 |
9.14 |
$0.45 each |
* This special pricing is being offered for a limited time and
is only good with the purchase of an equal number of these Racex®
fasteners.
|
|

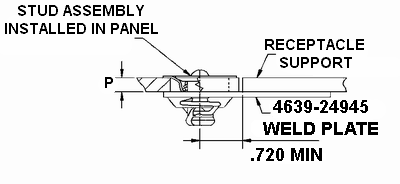

Typical Installation
|
|
|
