RACEX®

The new RACEX® product line exhibits the same quarter-turn locking action and vibration tolerance as all of the rest of the DFCI products. These products are compatible with existing Racing Components 4639-195-14S-PAS and ST-1200 Line 1224-945 Receptacles and with the SU-2300 Line 2500-18 Receptacle. The performance of the RACEX® product is comparable with the ST-1200 Line's 1258-F products. The replacement of the housing in the 1258-F product with the collar in the RACEX® Ejecting product produces a clean appearance. In addition, the installation is simplified by requiring only one hole in the panel as compared with the three holes required for the 1258-F product.

Installation consists of:

1. drilling the appropriate size hole, (.546" [13.9 mm] in the panel and .703" [17.9 mm] in the support)
2. inserting the collar into the hole, and
3. installing the retaining ring.

The retaining ring is installed using a pair of conventional snap-ring pliers, no special tools are required.

The RACEX® Ejecting product has a low profile of approximately .030" (0.8 mm).

RACEX®-E

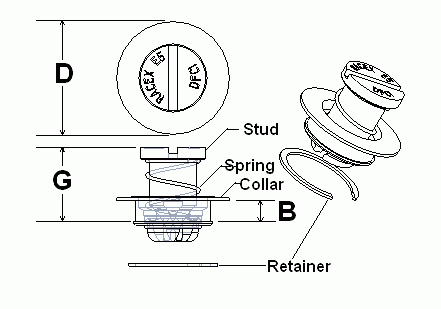

D is the diameter of the collar. D: .750" (19.0 mm) B represents the part of the collar that is used for retention. The maximum panel thickness is this B dimension minus the retainer thickness (.035" [.9 mm]) less .005" (.12 mm) for tolerance. B Panel Thickness   in mm in mm 1 .135 3.4 .001-.095 0.0-2.4 2 .195 5.0 .096-.155 2.4-3.9 3 .235 6.0 .156-.195 3.9-4.9 Retainer Thickness: .035" (.9 mm) G Represents the Grip Length. This varies from .400" (10.2 mm) to .850" (21.6 mm) in increments of .050" (1.3 mm).

Materials:

Installation:

The retaining ring part number is: RACEX-RR-5-SS

The required retaining ring is sold separately.

Stud Selection

Using the Racing Components Line 4639-195-14S-PAS Receptacle

Using the SU-2300 Line 2500-18 or 2500-18F Receptacle

Note: The gaps in the Material Thickness supported with the SU-2300 Line Receptacles can be filled in with the addition of a .020" (.5 mm) spacer between the receptacle and the support.

Using the ST-1200 Line 1224-945 Receptacle
