RACEX®


All RACEX® products come with a LIFETIME LIMITED WARRANTY.

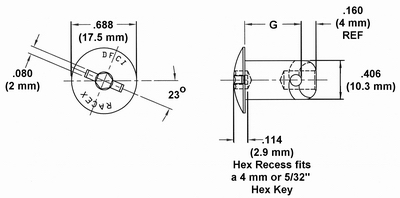

The Hex/Slotted RACEX® stud can be used as a direct replacement for the 121N-65 stud.

The slot on this stud is sized for use with a standard screw driver and is slightly truncated and recessed. This design reduces the likelihood of the screw driver slipping and scratching the surface of the panel on which it is mounted.

The hex recess is sized for a 5/32" (4 mm) hex key. This also will tend to hold the tool in the stud head and reduce the likelihood of the tool slipping and scratching the surface of the panel on which it is mounted.

Material: hardened steel

Finish:

RACEX® Stud Part Number Stud Grip * Grip Length
in mm
RACEX-A6540-Z3CT 40 .400 10.2
RACEX-A6545-Z3CT 45 .450 11.4
RACEX-A6550-Z3CT 50 .500 12.7
RACEX-A6555-Z3CT 55 .550 14.0
RACEX-A6560-Z3CT 60 .600 15.2
RACEX-A6570-Z3CT 70 .700 17.8
RACEX-A6580-Z3CT 80 .800 20.3

The RACEX® A65 stud can be used with both the 1219-6 S-Spring receptacle and the 1224-441 Weld Plate Receptacle. Sizing information is provided on the appropriate receptacle page.

*The "Stud Grip" is the same "Stud Grip" shown on the receptacle page.
