ST-1200 Line Size 3 Receptacle - Sealed Pressed-In
The 1219-PS Receptacles pack a durable 1/4-turn action into a
compact, sealed unit.
The feel of their operation action is as crisp and solid as that
of the most rugged aircraft types.
Their sealed construction prevents metal dust from fastener
action from entering the enclosure and is compatible with
EMI barrier design.

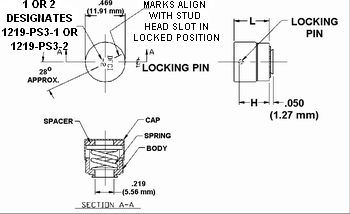

Part Number |
H DIM |
L DIM |
inches ± .010 |
mm ± .25 |
inches |
mm |
1219-PS3-1-Z3CT |
.305 |
7.75 |
.440 MAX |
11.18 MAX. |
1219-PS3-2-Z3CT |
.330 |
8.38 |
|
Note: The 1219-R3-SS (Snap Ring) retainer is the only stud
retainer allowing panel to support contact without requiring a
nest in the panel to contain the retainer.
Materials:
Body: Alloy steel
Cap: Stainless Steel, 300 series
Spacer: Steel
Coil Spring: Stainless Steel, 17-7PH, spring temper
Locking Pin: Stainless Steel, 17-7PH, spring temper
Finish:
Body:
Spacer:
|
Characteristic |
Specification |
Locking Tension: |
20 lb at .033 (.84 mm) deflection |
Locking Torque: |
2 to 6 in-lb |
Locking Stop Yield: |
30 in-lb |
Tensile Strength: |
45 lb |
Endurance: |
15,000 cycles |
|
Installation:
|
Specifications |

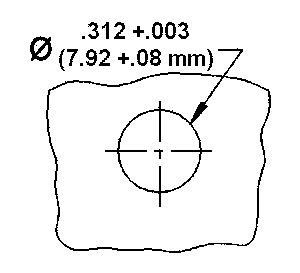

Support Hole Dia. (for receptacle insertion)
|
.312 +.003/-.000 (7.92 +.08/-.00 mm)
|
Minimum Support Thickness |
.050 (1.27 mm) |
Press-in Pressure |
2500 lb |
Notes:
- These specifications are taken from test results when the
receptacle is press fit into 2024T6 Aluminum.
- The press-in force should be steady rather than a sharp blow.
- Use the minimum pressure necessary to fully seat receptacle
shoulder flush against the support. The required pressure should
be determined by testing.
- Do not exceed 2700 lb pressure.
- Observe installation procedures normal for standard
self-clinching nuts.
Stud Selection
Material Thickness (Panel + Gap + Support) |
Use Size 3 stud with following Stud Grip |
Use 1219-PS3 |
inch |
mm |
.050-.064 |
1.27-1.63 |
35 |
-2-Z3CT |
.065-.089 |
1.65-2.26 |
35 |
-1-Z3CT |
.090-.114 |
2.29-2.90 |
40 |
-2-Z3CT |
.115-.139 |
2.92-3.51 |
40 |
-1-Z3CT |
.140-.164 |
3.56-4.17 |
45 |
-2-Z3CT |
.165-.189 |
4.19-4.80 |
45 |
-1-Z3CT |
.190-.214 |
4.83-5.44 |
50 |
-2-Z3CT |
.215-.239 |
5.46-6.07 |
50 |
-1-Z3CT |
.240-.264 |
6.10-6.71 |
55 |
-2-Z3CT |
.265-.289 |
6.73-7.34 |
55 |
-1-Z3CT |
.290-.314 |
7.37-7.98 |
60 |
-2-Z3CT |
.315-.339 |
8.00-8.61 |
60 |
-1-Z3CT |
.340-.364 |
8.64-9.25 |
65 |
-2-Z3CT |
.365-.389 |
9.27-9.88 |
65 |
-1-Z3CT |
.390-.414 |
9.91-10.52 |
70 |
-2-Z3CT |
.415-.439 |
10.54-11.15 |
70 |
-1-Z3CT |
.440-.464 |
11.18-11.79 |
75 |
-2-Z3CT |
.465-.489 |
11.81-12.42 |
75 |
-1-Z3CT |
|
