ST-1200 Line Size 5 Retainers - Plastic Half Grommet

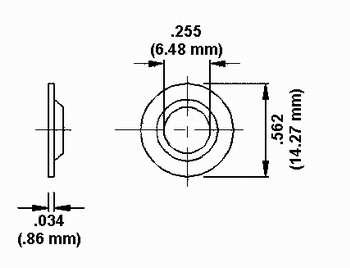

Plastic Half Grommet Retainer Picture Plastic Half Grommet Dimension Drawing

For use with all ST-1200 Line Studs

Part Number Color Material
127P-5B Black Thermoplastic
127P-5W White Thermoplastic
127P-5 Natural Polyethylene
Note: Color Black is the standard part.

Compressed Grommet Thickness: 0.035 (0.89 mm)

Weight: .0002 lb (0.09 g)

Push-Out Strength:
Standard Panel Hole: 50 lb min.
Oversize Panel Hole: 16 lb min.
